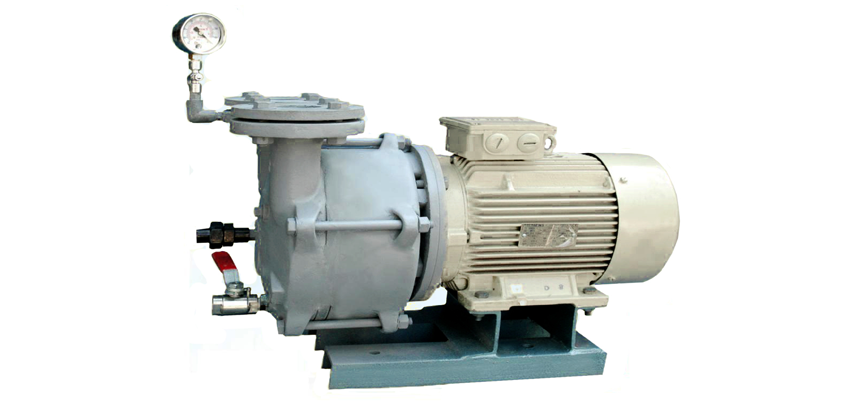

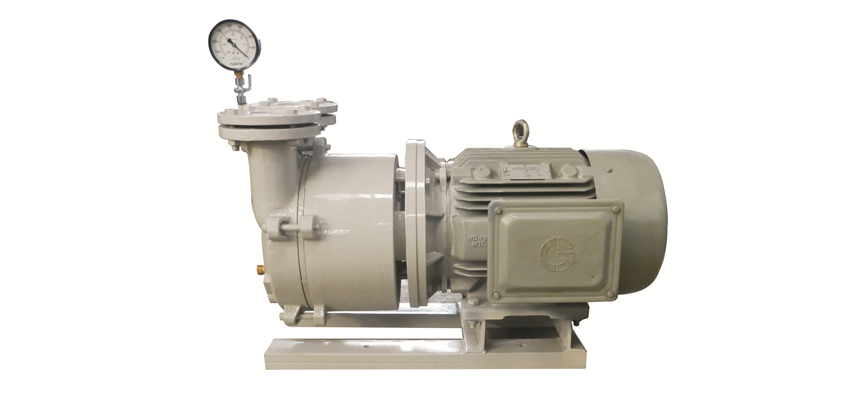

SHENOVAC MONOBLOCK WATER RING VACUUM PUMP & COMPRESSOR
INTRODUCTION
SHENOVAC ENGINEERS, DELHI, the most reliable and trusted manufacturer of Vacuum Pumps and their components for multifarious applications, have now indigenously developed another sparkling product “”MONOBLOCK WATER RING VACUUM COMPRESSOR, DIRECT DRIVE””, Directly mounted on suitable electric motor. Although the working principle and the performance of Pump are identical to its counterparts – Direct Drive Water-ring Vacuum/Compressor, it has some noteworthy features.
SAILENT FEATURES & ADVANTAGES
It is simple in design but robust in performance, It is compact, light in weight, portable hence handy, Noiseless, smooth operation & easy to maintain, most economical in cost-wise, and widely used by OEM (original equipment manufacturers).
APPLICATIONS:-
The Pump is designed and developed in such a way that it can effectively run in small industrialunits and plants, Pharmaceuticals, Food & Confectionary, Bottle filling, Labelling, Pulp & Pulplayer, Distillation, Filtration, Evaporation, Sterilization, Degasification, Condensation, Plastic Industries etc.
TECHNICAL SPECIFICATIONS
| Model No. | Motor HP Req | RPM | Free Air Displacement in M 3 /Hr. | Water Consumption LTR/Min. | Approx weight Bare Pump in Kgs. |
|---|---|---|---|---|---|
| SVMW-10 | 1 | 2880 | 22 | 3 | |
| SVMW-20 | 2 | 2880 | 30 | 5 | |
| SVMW-30 | 3 | 1440 | 55 | 7 | |
| SVMW-50 | 5 | 1440 | 90 | 9 | |
| SVMW-75 | 7.5 | 1440 | 160 | 12 | |
| SVMW-100 | 10 | 1440 | 220 | 15 | |
| SVMW-150 | 15 | 1440 | 330 | 22 |
